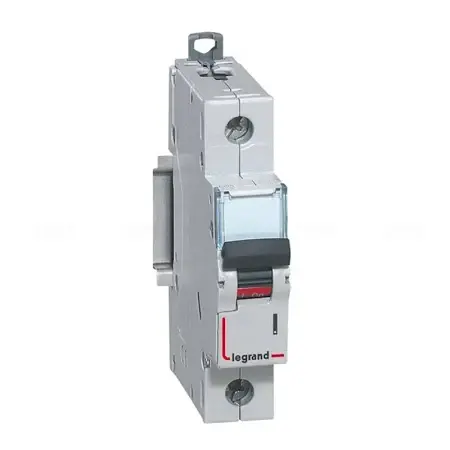

Legrand DX3 Single Pole 6A C Curve MCB

• Miniature circuit Breaker

​    * 240/415V ~

• Primary uses:
• • Lighting circuits:
    Ideal for controlling standard lighting systems in homes and offices.

  • Low-power outlets:
    Protects standard electrical outlets used for lower-power appliances, which may be rated at 6 amp.

  • Networking equipment:
    Provides protection for sensitive equipment like computers and network devices against electrical faults and surges.

  • DC applications:
    Can be used as a switch on the DC side of systems, such as a PV charging controller.

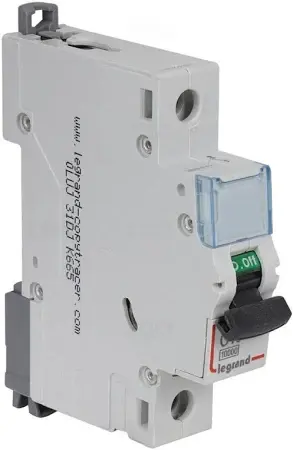

Legrand DX3 Single Pole 10 A C Curve MCB

Miniature circuit Breaker

Brand	Legrand
Breaking Capacity	10 kA
Category	MCBs
Current Rating	10 Amps
Pole	Single Pole
Type of Curve	C
Type	AC

• • Primary functions
  • • Circuit protection:
      It automatically trips and breaks the circuit when the current exceeds 10 amps to prevent damage to wiring, appliances, and the electrical system.

    • Overload and short-circuit safety:
      It protects against two main issues: overloads (excessive current over time) and short circuits (a sudden, large surge of current).

  • Common applications
  • • Residential and commercial lighting circuits:
      Protects circuits for lights and outlets in homes, offices, and other buildings.

    • Fans and small appliances:
      Used for circuits that power devices like fans, and sometimes small motors.

    • Specific medium-power appliances:
      Can be used for appliances that draw between 7 and 10 amps, such as certain washing machines, dishwashers, or immersion heaters, although it is often more common to use a dedicated circuit for these.

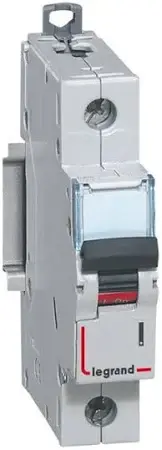

Legrand DX3  20A C-Curve 10kA 1 Pole MCB

• Features

Brand: Legrand

Product Category: Single Pole MCB

Series: Legrand DX3

Current Rating: 20 Amp primary uses: protects an electric circuit from any sort of damage caused by overloading or short circuits.

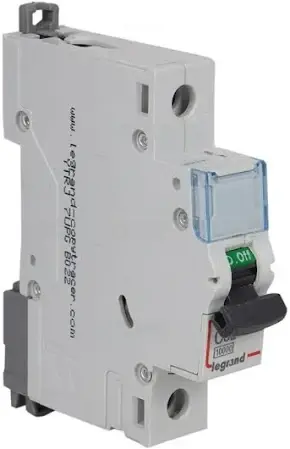

Legrand DX3 Single Pole 32 A C Curve MCB

Specifications

• • Number of Pole-Single Pole

  • Current Rating-32 A

  • Voltage-230 V

  • Breaking Capacity-10 kA

  • Frequency-50 Hz

  • Curve-C Curve

  • Voltage Type-AC

  • Brand-Legrand

  • Product Code-DX3

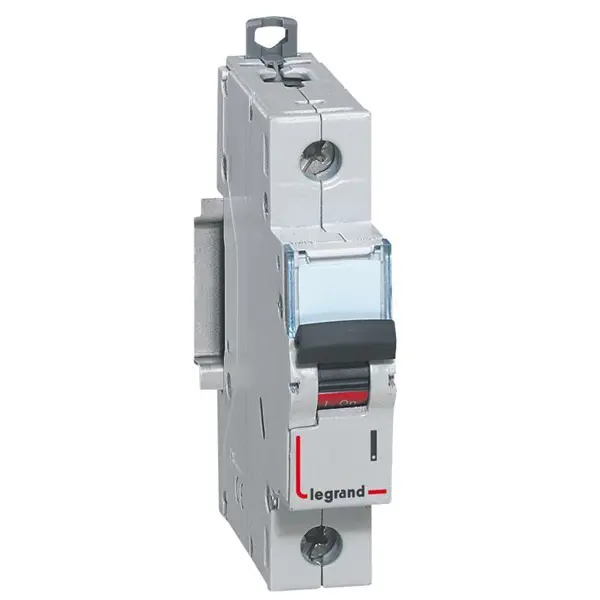

Legrand DX3  63A C-Curve 1 Pole MCB

Brand	Legrand
Model	DX3 Series
Tripping Characteristic	C
Operational Voltage	240/415 V
Rated Operational Voltage	415 V AC
Input Voltage Type	AC
Rated Current (In)	63A
Rated Short-Circuit Capacity	(415 V AC) 10kA
Rated Frequency (f)	50 / 60 Hz
Number of Poles	1
Degree of Protection	IP20

L&T 16A C Curve 2 Pole MCB

1.  True contact indication for individual pole
2. Label holder facility for all configurations
3. Conforms to IS/IEC 60898 – 10kA
4. Conforms to IEC 60947 – 2 15kA C-curve till 40 A – 10kA C-curve for 50A, 63A
5.  Low watt loss – almost 50% of the values prescribed by IS/IEC 60898
6. Trip free mechanism
7.  Design based on advanced current limiting hammer trip mechanism
8. No Line-Load bias
9. Suitable for accessory fitment

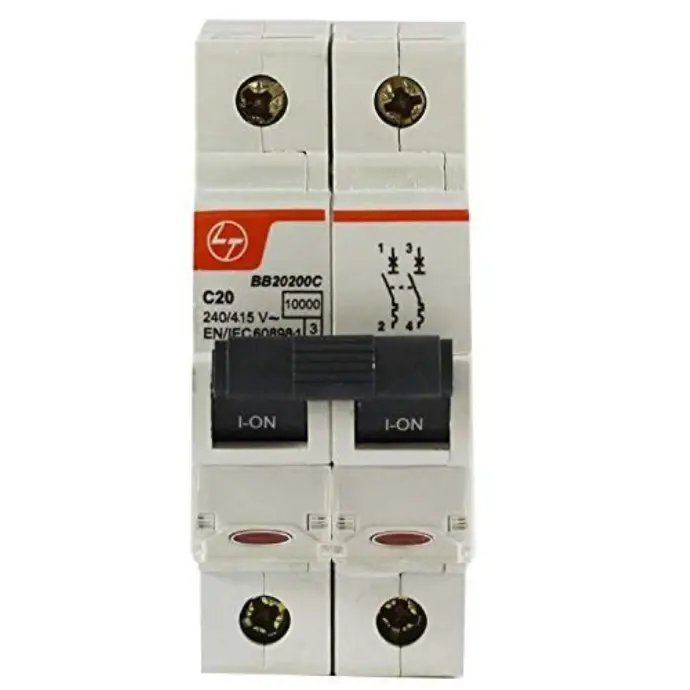

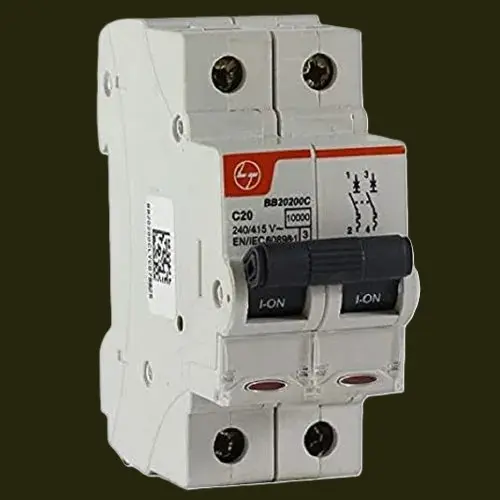

 L&T 20A

 2 Pole MCB

No.of Poles	Double Pole
Rated Current	20A
Brand	L&T
Model Name/Number	BB20200C
Series	C20
Series	C20
